RTX 5090 Owner Adds Dual 8-Pin to Stop 12V-2x6 Melting, Temps Stay Under 40°C

Ever worried your RTX 5090's 12V-2x6 connector might melt under load? You're not alone, and one Reddit modder may have found a workaround worth a look.

NVIDIA's 12V-2x6 power connector has built up a nasty reputation on RTX 50-series cards, with burnout cases popping up again and again. The usual culprit? Uneven load management across the pins. So Reddit user DallasGrave decided to take matters into their own hands with an MSI RTX 5090.

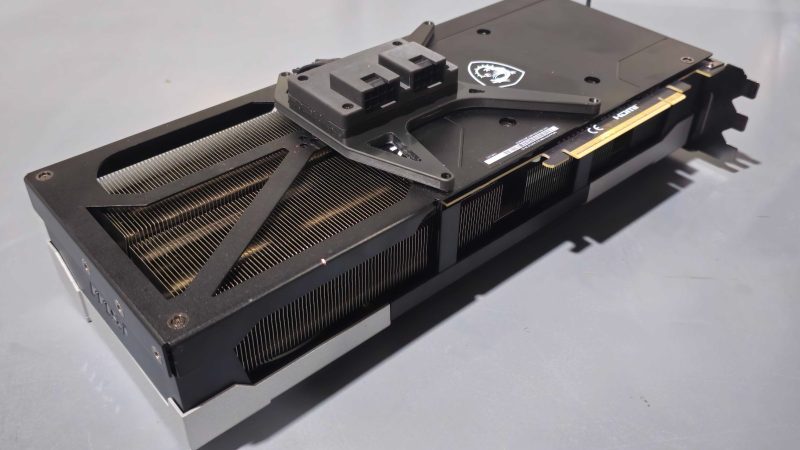

The mod is pretty clever. DallasGrave hooked the card's existing 12V-2x6 slot up to an adapter board packing two extra 8-pin PCIe power connectors. That turns the GPU's power setup into a hybrid: 12V-2x6 plus 2 x 8-pin. Since each 8-pin PCIe connector can handle around 150W and uses thicker, more heat-resistant wiring, the idea is to split the burden. With the RTX 5090's peak transient load already pushing the 12V-2x6 to its 600W ceiling, this setup could theoretically cut the connector's load roughly in half, lowering the odds of overheating and melting.

The real-world numbers back it up, at least according to the modder's own testing. Running the card at a sustained 550W for 48 hours straight, every wire and connector, solder joints included, stayed below 40°C. Compare that to a single 12V-2x6 running full tilt, which typically hits 50-60°C, and can spike past 100°C when load balancing goes wrong. That's a pretty dramatic improvement.

Not everyone is convinced, though. Some commenters pointed out that plenty of burnout cases happen right at the connector itself, and all that current still funnels through the 12V-2x6 plug in the end. In other words, the fix only solves half the problem. If the plug oxidizes or deforms, an accident is still possible.

DallasGrave acknowledged as much, saying the 12V-2x6's flaws are baked in, and even a higher-quality socket wouldn't fully fix them. Still, splitting the load lowers total resistance and spreads the power draw, so if one point starts struggling, the burden gets shared instead of everything going up in smoke.

After enough long-term testing and real failure cases, the idea of splitting 12V-2x6 power is starting to look like common consensus. Most incidents cluster around the RTX 5090, which pushes the connector right to its limit. Going forward, GPU makers might need to consider dual-interface designs to keep power delivery safe.

Would you ever mod your own GPU like this, or would you rather wait for manufacturers to fix it? Let us know in the comments.
